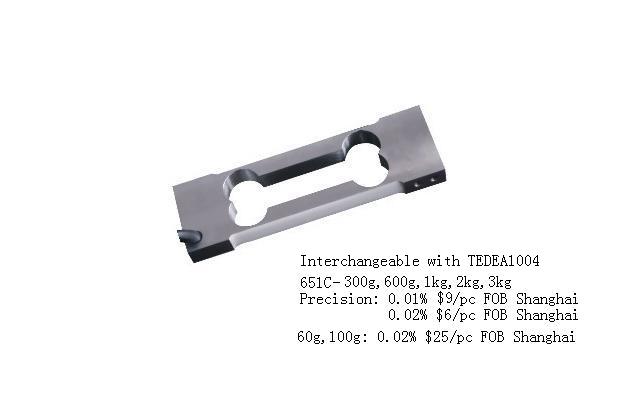

high precision load cells for precision balances, TEDEA1004(651C)
| Subject: | high precision load cells for precision balances, TEDEA1004(651C) |
| Update Date: | 2009-03-04 13:55:52.0 |
| Valid Period: |
Never expired
|
or
or
Description
| Type |
651C |
|
Accuracy class
Maximal numbers of load cell verification intervals (nLC)
|
|
C3
5 000
|
|
Maximal capacity (Emax)
Minimumload cell verification interval(Vmin)
|
kg
% of Cn |
0.05;0.1;0.2;0.3
0.02 |
0.6,1,2,3
0.02
|
|
Reference Max.platform size
Weight (G), approx.
|
mm
kg |
200×200×300
0.3 |
| Sensitivity (Cn) |
mv/v |
0.8±10% |
1.0±10% |
|
Zero balance
Temperature effect on sensitivity (TKc)
Temperature effect on zero balance (TKo)
Non-linearity (dlin)
Repeatability (drep)
Hysteresis error (dhy)
Creep (dDR)in 30 min.
Input resistance (RLC) [Red(+)-black(-)]
Output resistance (RO) [green(+)-white(-)]
Reference excitation voltage (Uref)
Maximal excitation voltage
Insulation resistance (Ris)
Nominal temperature range
Service temperature range
Storage temperature range
|
% of Cn/k
% of Cn/k
%
%
%
%
Ω
Ω
V(DC/AC)
V(DC/AC)
GΩ
℃［oF］
℃［oF］
℃［oF］
|
±0.02
< ±0.0012
<±0.0040
<±0.017
<±0.017
< ±0.017
< ±0.02 (Available C6)
415 ±15
350±3
0.5…12
18
>1［50 VDC ］
-10…+40［15…+105］
-10…+50［15…+122］
-25…+70［-13…+158］
|
|
Safe load limit (EL)
Breaking load (Ed)
|
% of Cn
% of Cn
|
150
300
|
|
Protection class (IP) acc. to IEC529
|
IP66 |
|
Material
Optionally
|
Aluminium
Explosion proof version (Ex ib II CT4) |
|
|
* The data for deviation of linearity, repeatability, hysteresis error and temperature effect on sensitivity are
typical values. The sum of these data meets the requirements according to OIML R60. |
